Three UV printing platforms covering rigid flatbed, large-format flatbed, and hybrid roll-to-roll production.

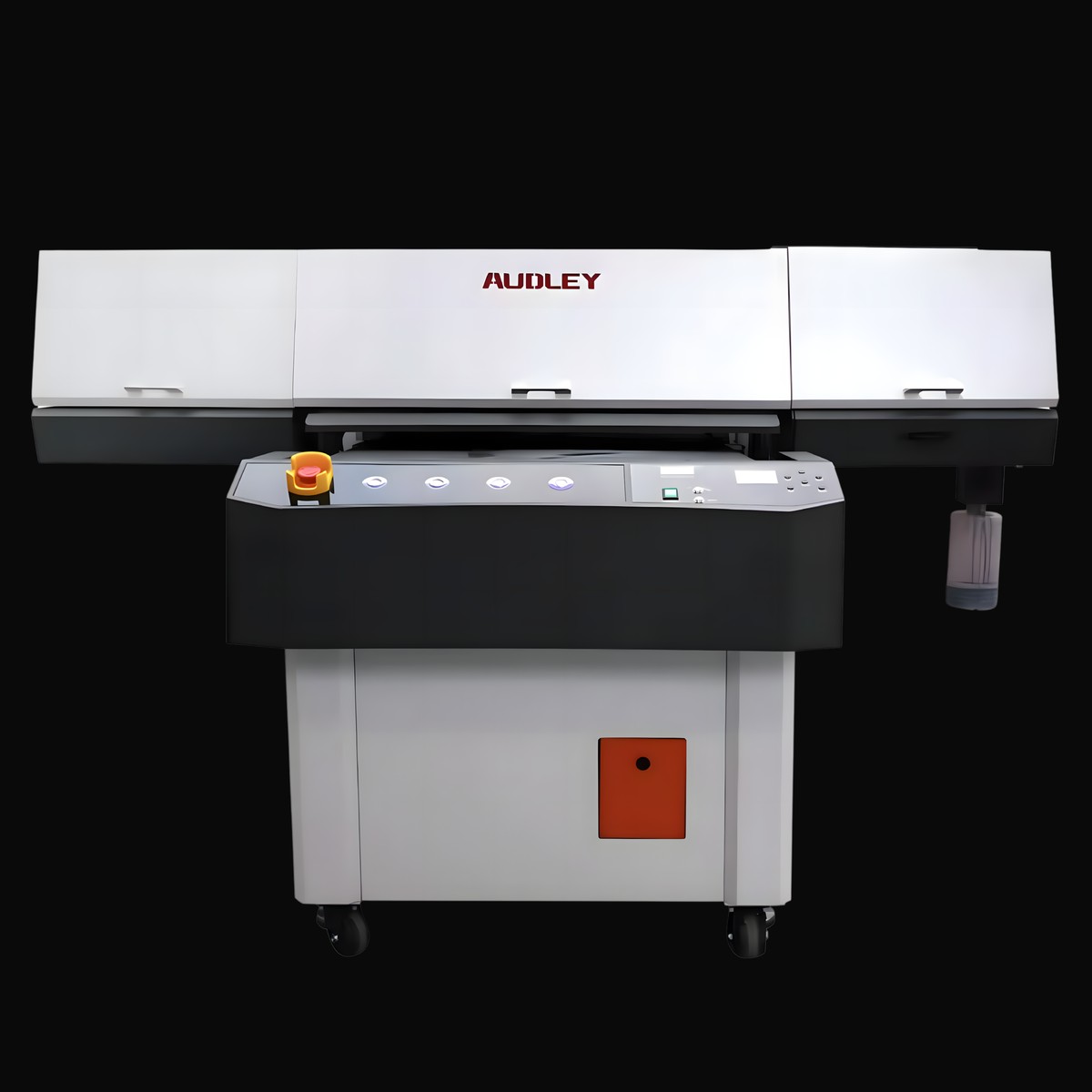

A 3-head Epson i3200-U1 UV flatbed built for precision work on rigid and irregular objects, with a built-in camera scanning system for accurate registration.
| Model | 9060 UV Printer with Camera |
| Print Head | 3 × Epson i3200-U1 |
| Nozzle Number | 3,200 |
| Bed Size | 24.5" x 35.5" |
| Clearance | 5.9" |
| Printing Material | Metal, leather, wood, plastic, glass, ceramic, etc. |
| Ink | CMYK + White + Varnish (Soft or Hard type) |
| UV Curing System | 3 LED lamps with water chiller |
| Suction Platform | Vacuum |
| RIP Software | RIIN |
| Power | 2700W |
| Weight | 925 lbs |
| Packing Size | 87" x 60" x 38" |
Full spec sheet · PDF

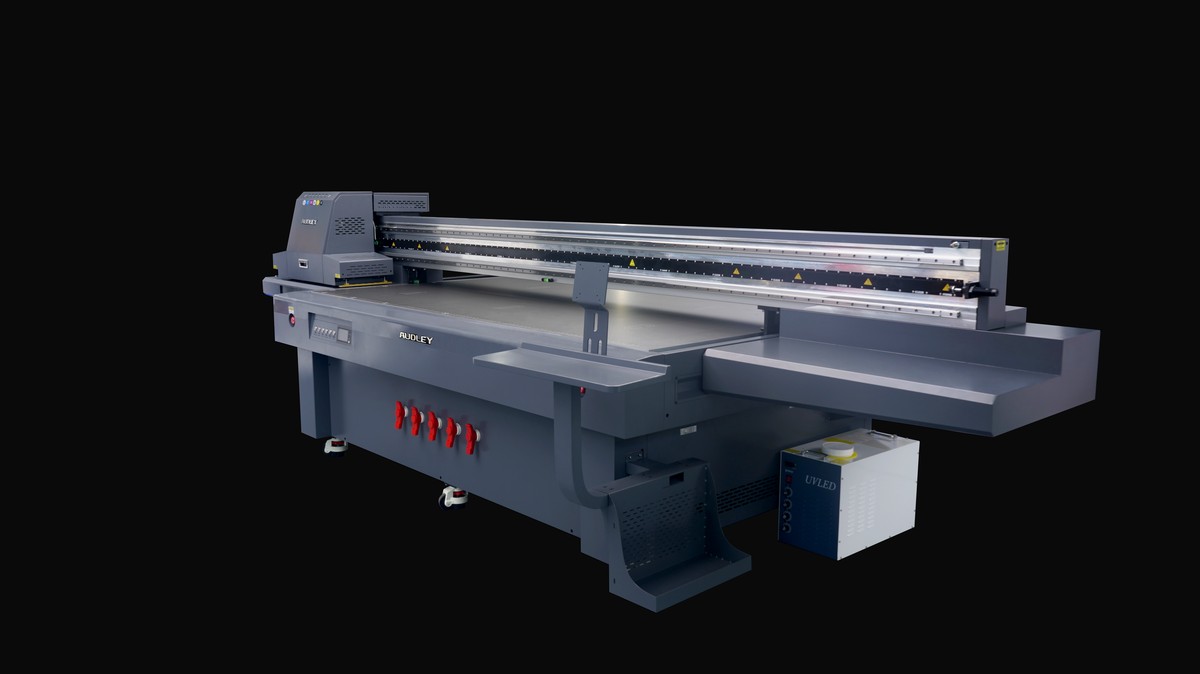

A large-bed UV flatbed with 4–8 Ricoh G6 printheads, dual guide rails, and a scanning anti-collision system — built for high-volume rigid substrate production.
| Model | 2513 UV Flatbed 4' x 8' |
| Print Head | 4–8 pcs of Ricoh G6 head |
| Printing Size | 2450 x 1300 mm |
| Printing Height | 150 mm |
| Maximum Camera Scanning Size | 2400 x 1300 mm |
| Camera | 1200 dpi |
| Ink Supply | Big tank, white ink with stirring motor, damper heater system in carriage station |
| Printing Material | Phone case, leather, acrylic, glass, metal, PVC, PE, wood, etc. |
| Voltage | AC220V 50Hz |
| RIP Software | Flexi / RIIN / Maintop |
| Cooling System | UV curing water chiller |
| Image Format | TIFF / BMP / PDF / EPS / JPEG, etc. |
| Packing Size | 499 x 230 x 185 cm |
Full spec sheet · PDF

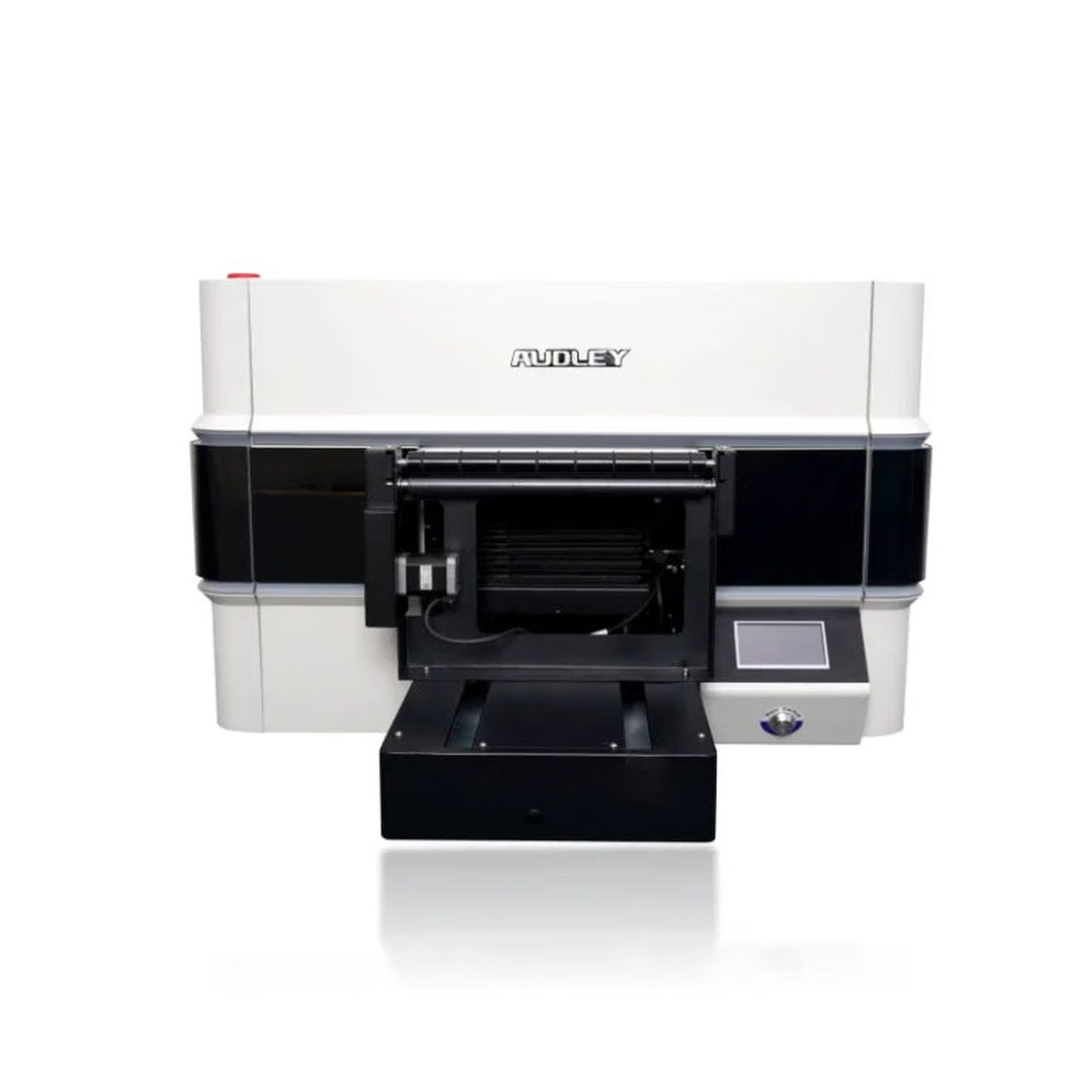

A compact flatbed-and-roll hybrid with a single Epson i3200(8)-U1 HD head, touch-screen control, and roll-to-roll capability — ideal for small runs, bottle printing, and prototyping.
| Model | A3 12" UV Hybrid |
| Print Head | 1 × Epson i3200(8)-U1 HD |
| Printing Width | 11.8" |
| Clearance | 3.5" |
| Printing Material | Metal, leather, wood, plastic, glass, ceramic, etc. |
| Camera | 300 dpi / 600 dpi |
| Ink | UV ink (CMYK + White x2 + Varnish x2) |
| UV Curing System | LED lamp with fan cooling |
| Ink Tank | 250 ML x 8 |
| RIP Software | RIIN / Maintop / Photoprint |
| Power | 400W |
| Weight | 265 lbs |
| Packing Size | 37" x 30" x 42" |
Cylindrical object printing speed: 4 PASS 0.45 m²/h · 6 PASS 0.30 m²/h · 8 PASS 0.20 m²/h
Full spec & speed sheet · PDF
Tell us about your materials and volume — we'll help you pick the right Audley UV flatbed.
